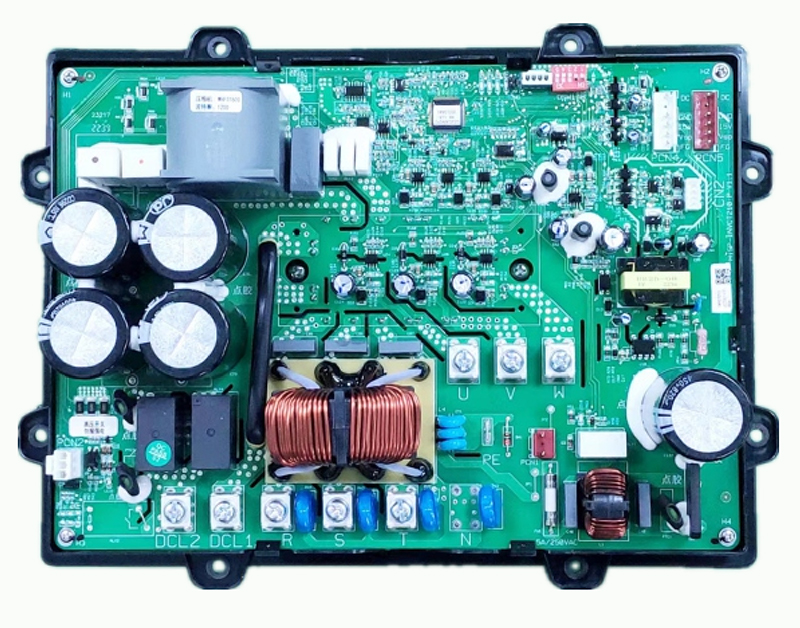

1、Product parameters:

PRODUCT MODEL	supply voltage	Input power	output current	Product sizeLxWxH(mm)
INVCT211	380VAC 50/60Hz 415VAC 50/60Hz	14kW	28A	318 x 238 x 134
INVCT212		20kW	40A

2、characteristic:
Universalization:Covering a power range of 7-18HP, different compressors can be easily configured by dialing codes.

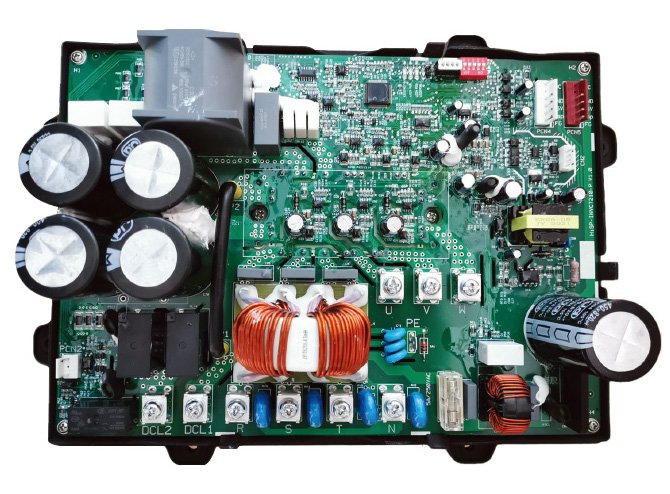

Integration:The functions of compressor drive, filter, and built-in fan control are integrated onto the same PCB, making the design of the electrical control box simpler.

3、High reliability:
①Dual switch topology structure:Easily achieve standby power consumption<; 5W, meeting customers' energy-saving needs while extending the service life of capacitors;
②Three phase imbalance handling mechanism:Ensure reliable operation even under harsh grid quality conditions, with no degradation in service life;
③Pollution Level III+Full Coating:Ensure the reliable operation of products in harsh polluted environments;
④Double 85 and strife test：Comprehensive and multi-dimensional (voltage, temperature, and load) rigorous testing to ensure the normal operation of the product under extreme working conditions;
⑤Professional PCBA OEM factory:Ensure more reliable production quality of delivered products.
